Ground Views

G101, G102, G104, and G109

Click to Enlarge

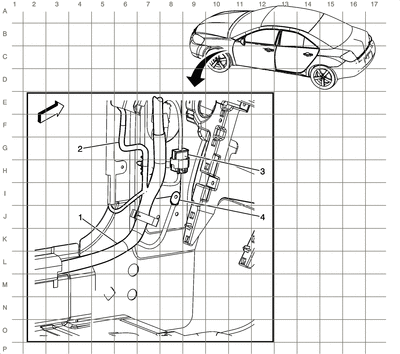

1 G101
2 G102
3 G109
4 G104

Electronic Power Steering (EPS)

Click to Enlarge

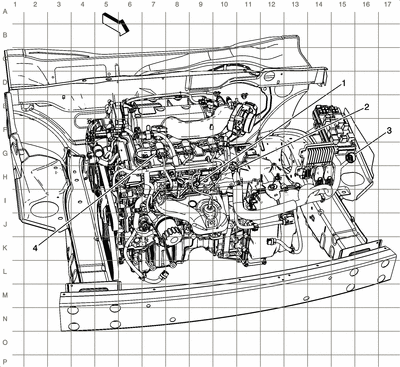

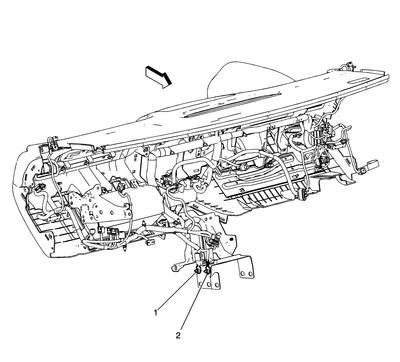

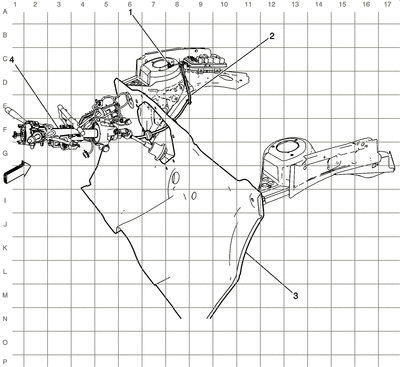

1 G103 (NV7)
2 EPS Harness
3 Dash Panel
4 Power Steering Control Module (without NVH)

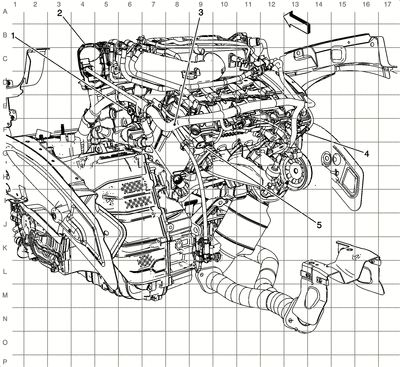

G105 and G106 (LE5)

Click to Enlarge

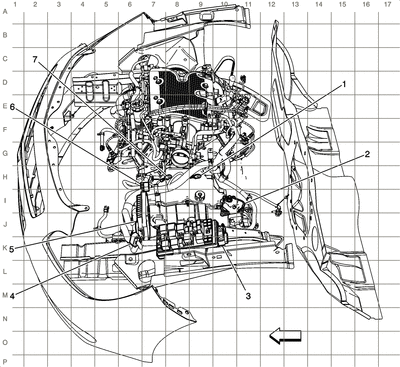

1 Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor Connector
2 J101
3 G105
4 Fuse Block– Underhood X1
5 X108
6 X100 (MN5)
7 J118
8 G106
9 X130

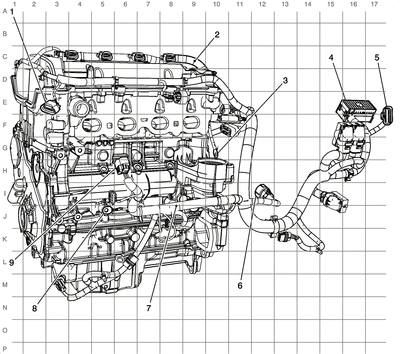

G113 (LY7)

Click to Enlarge

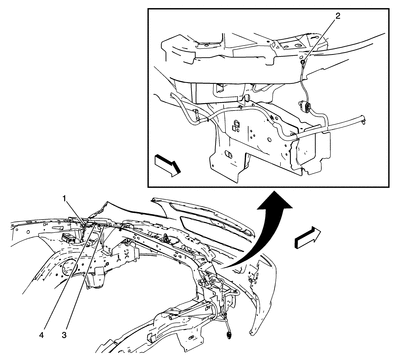

1 G113
2 J199
3 X108
4 X130

G106 (LE5 with MH8 and NU6) and G110 (LE5)

Click to Enlarge
1 G110
2 G106 (LE5 with MH87 and NU6)

G105, G106, and G111 (LY7)

Click to Enlarge
1 G105
2 Throttle Actuator Control (TAC) Module
3 J198
4 G106
5 G111

G105 and G106 (LZ4 or LZE or LZ9)

Click to Enlarge
1 G106
2 Park/Neutral Position (PNP) Switch
3 Fuse Block– Underhood
4 X108
5 Engine Control Module (ECM)
6 X103
7 G105

G201 and G203

Click to Enlarge
1 G201
2 G203

G301, G302, G303, G304, and G305 (Coupe)

Click to Enlarge

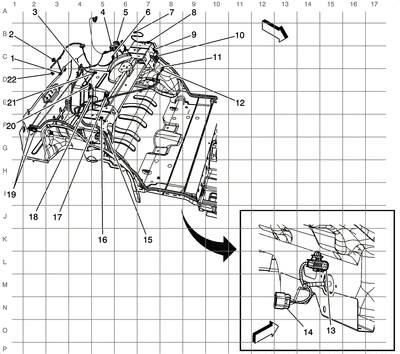

1 X419 (AY0)
2 X351 (UE1)
3 Seat Belt Retractor Pretensioner – Driver
4 X300
5 X308 (AJ7 or AY0)
6 X208
7 X206
8 X203
9 X500
10 G303
11 X214
12 Body Control Module (BCM) X3
13 X207
14 X600
15 G305
16 G304
17 X216
18 X310
19 X309 (AJ7 or AY0)
20 Seat Belt Retractor Pretensioner – Driver
21 G301
22 X420 (AY0)
23 Fuse Block – Rear X4
24 Fuse Block – Rear X1
25 G302

G301 and G302

Click to Enlarge

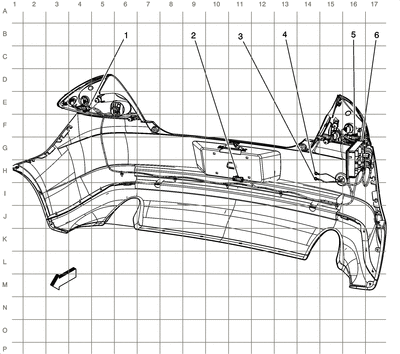

1 Rear Compartment Lid Release Switch Connector
2 Center High Mounted Stop Lamp (CHMSL) Connector
3 Rear Compartment Courtesy Lamp Connector
4 Fuse Block– Rear X4
5 Fuse Block– Rear X1
6 Speaker– Left Rear Connector
7 X419 Body Harness to Roof Rail Inflatable Restraint Module– Left Hand (AY0)
8 Rear Window Defogger Grid X1 Connector
9 G302
10 X351 Body Harness to Headliner Harness (UE1)
11 Antenna Amplifier Module X1 Connector
12 Coax AM/FM Connector
13 X413 Body Harness to Fuel Tank Harness
14 X403 Body Harness to Wheel Speed Sensor (WSS) Jumper Harness– Right Rear /Left Rear
15 G301
16 X420 Body Harness to Roof Rail Inflatable Restraint Module– Right Hand (AY0)
17 Digital Radio Receiver Connector (U2K)
18 Rear Window Defogger Grid X2 Connector
19 Audio Amplifier Connectors (U85)
20 Speaker– Right Rear Connector
21 Remote Control Door Lock Receiver (RCDLR) Connector (AU0)
22 Rear Compartment Lid Pulldown Actuator Connector

G303, G304, and G305

Click to Enlarge
1 X308 (AJ7 or AY0)
2 Park Brake Switch Connector
3 X303
4 X208
5 X206
6 X500
7 G303
8 X214
9 Body Control Module (BCM) X3
10 X216
11 X600
12 G305
13 G304
14 X207
15 Body Control Module (BCM) X1
16 X309 (AJ7 or AY0)
17 X310
18 Inflatable Restraint Seat Belt Pretensioner– Right Front Connector
19 X800 (Sedan)
20 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
21 X300
22 Inflatable Restraint Seat Belt Pretensioner– Left Front Connector
23 X700 (Sedan)

G303

Click to Enlarge
1 Body Harness
2 Headliner Harness (Convertible)
3 X200 (Convertible)
4 G303

G401 and G403

Click to Enlarge
1 X402
2 X416
3 G401
4 G403
5 X401
6 Fuse Block - Rear X1
